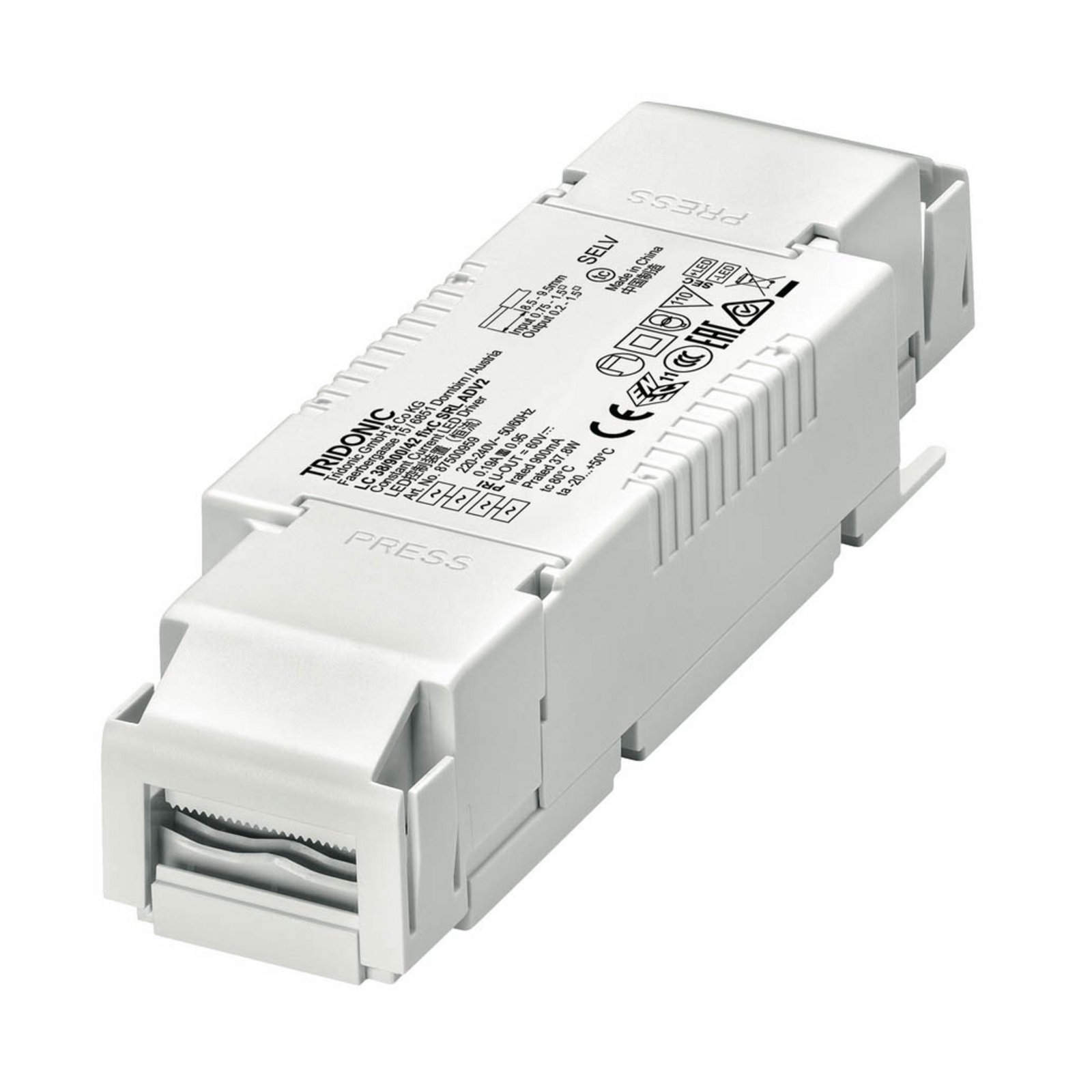

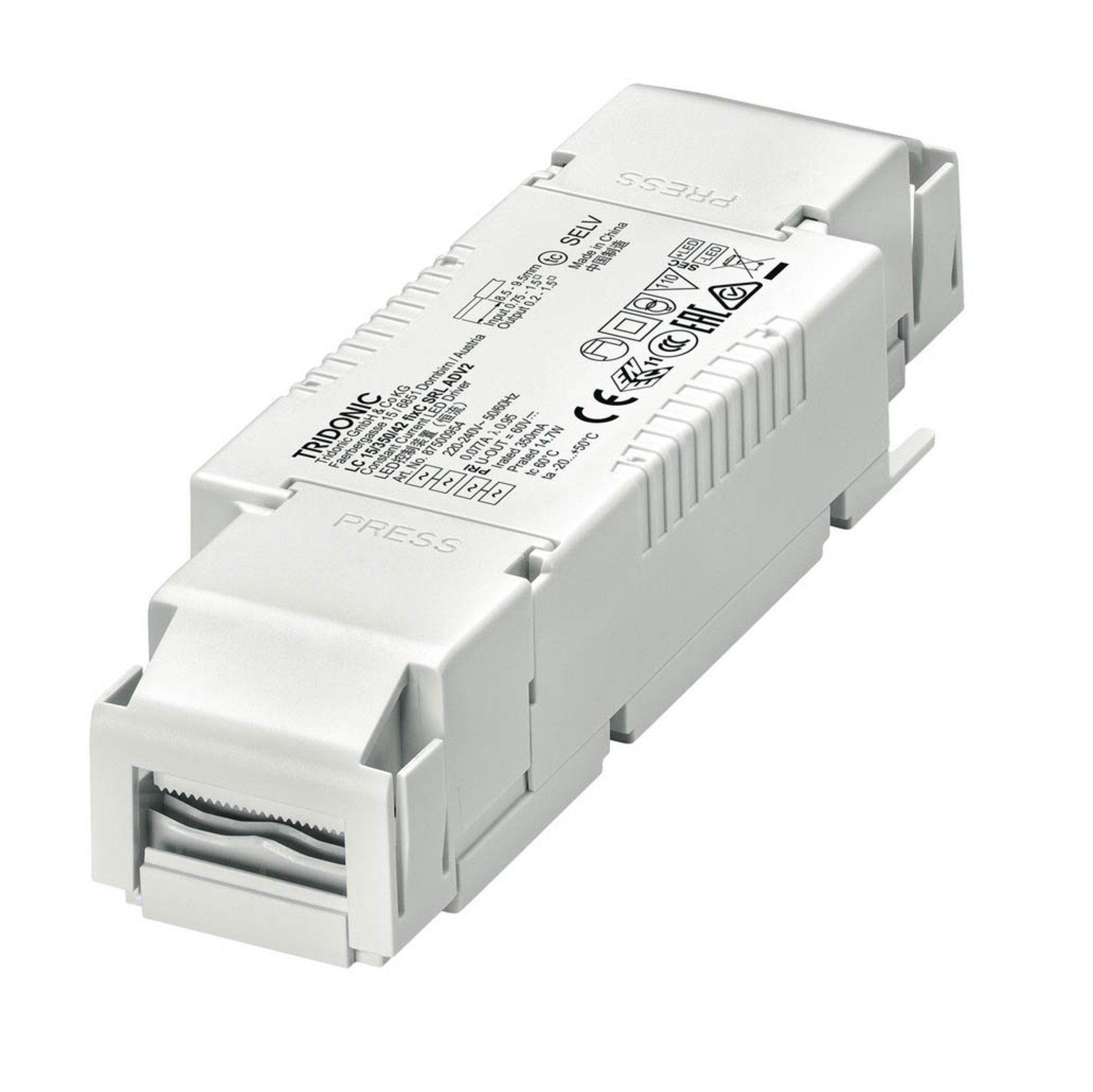

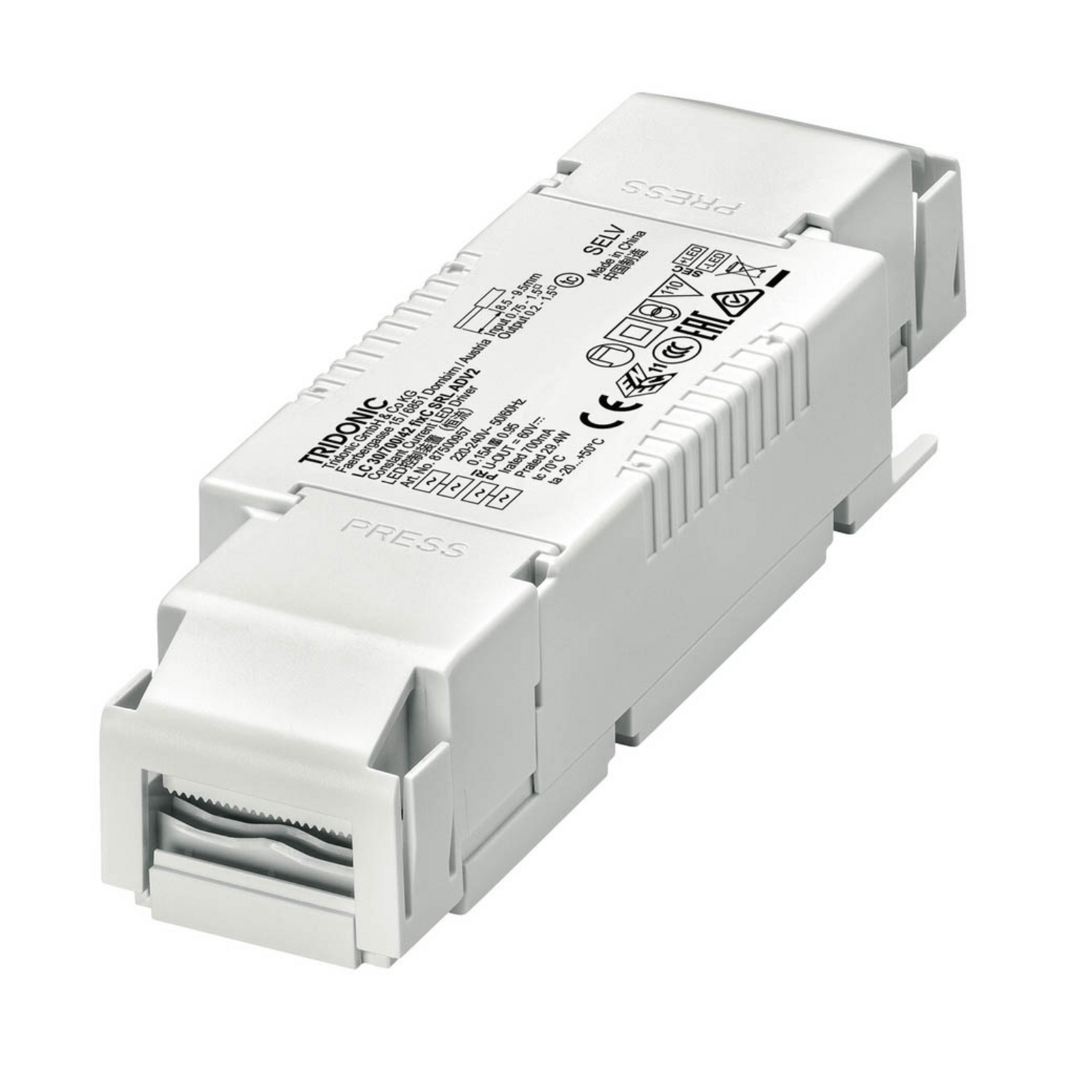

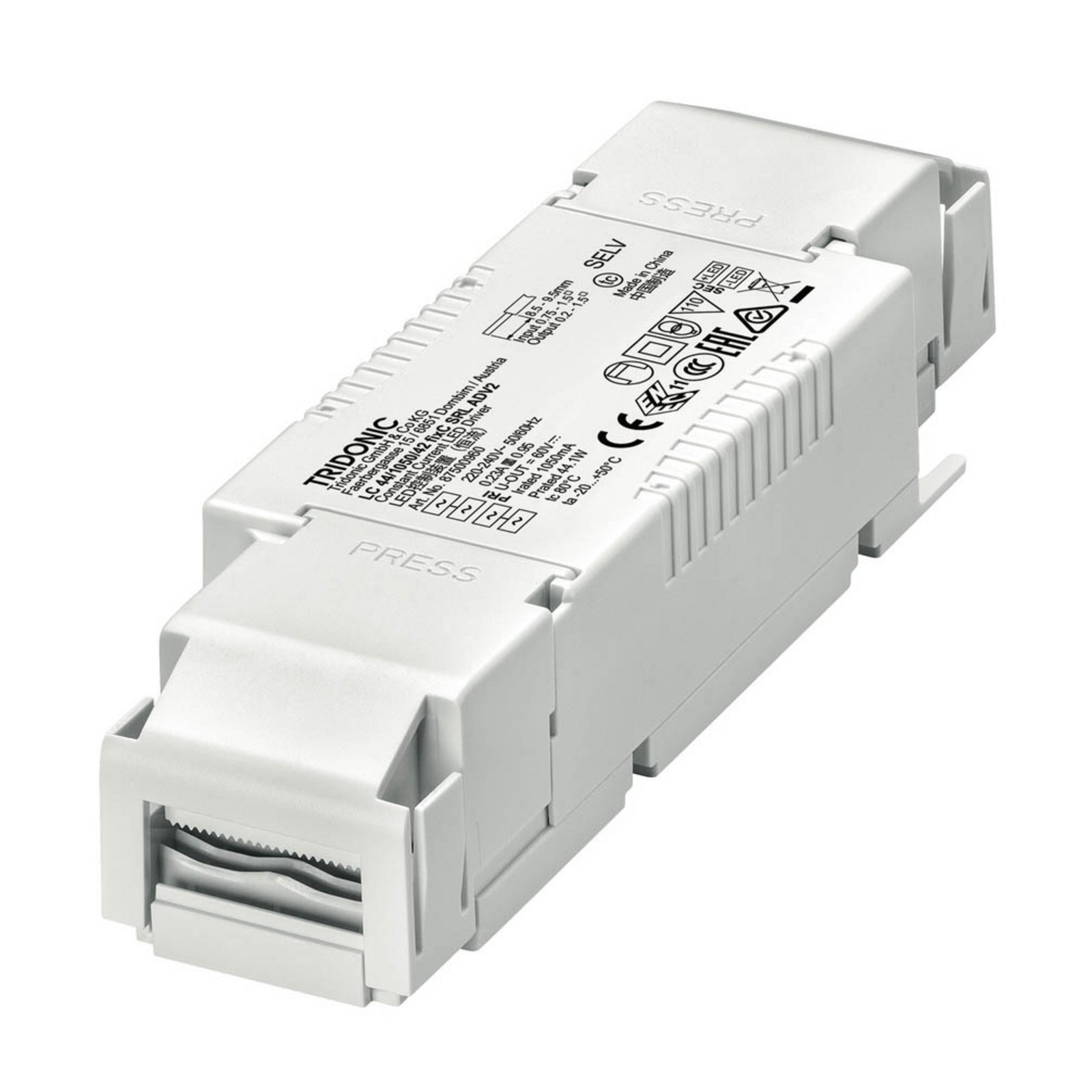

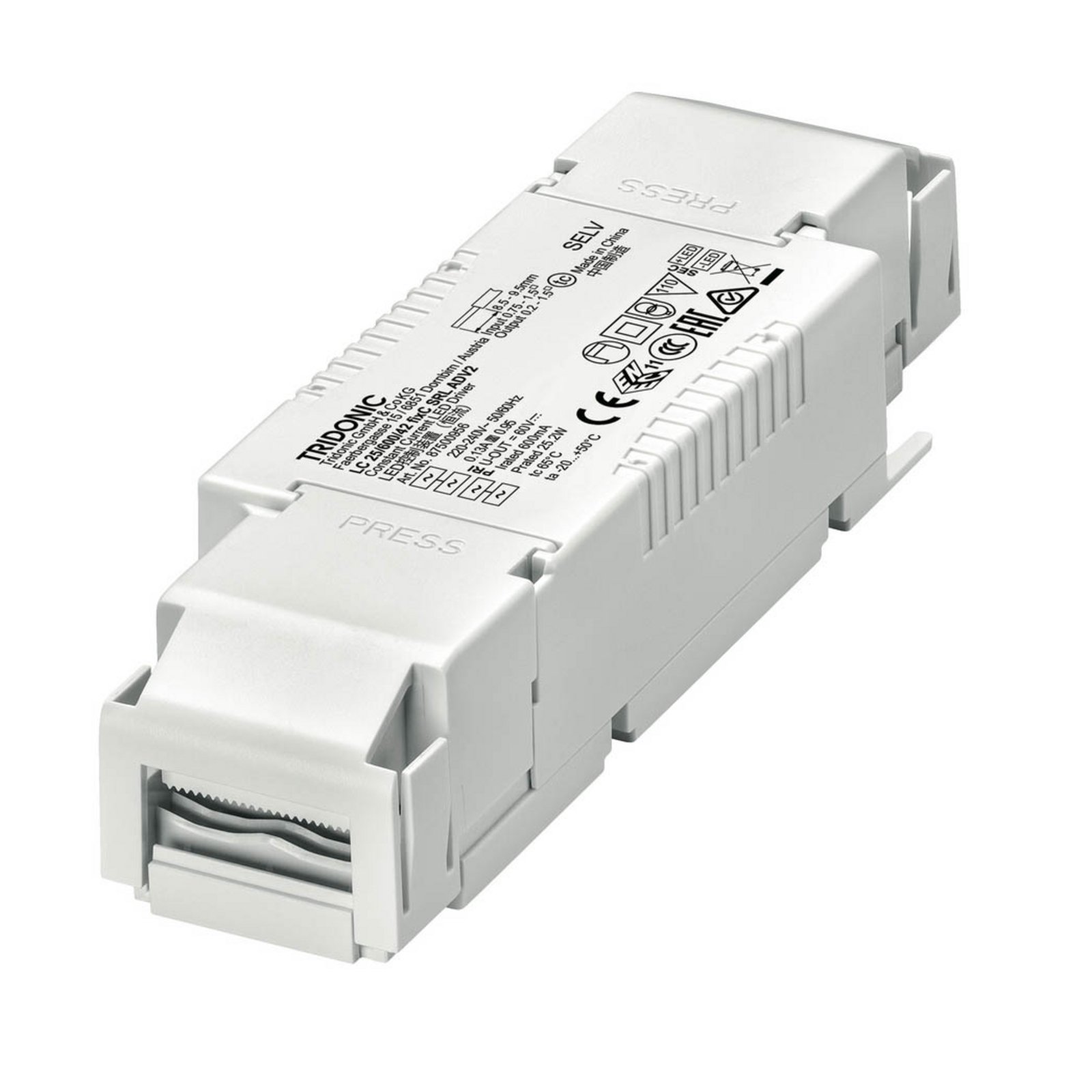

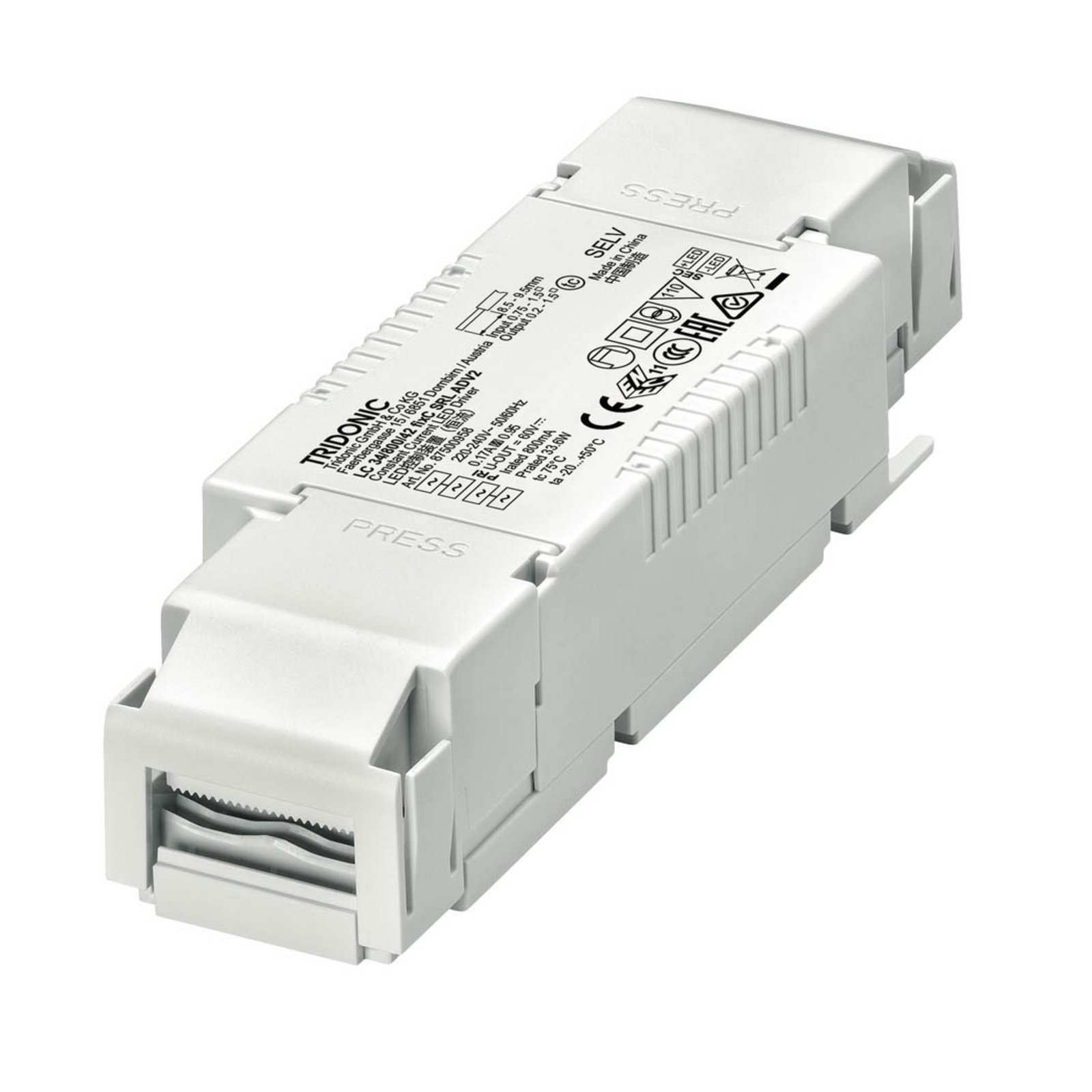

Konstantstrom-Treiber LC fixC SRL ADV2 IP20 from TRIDONIC This independent, compact LED driver is designed in particular for supplying downlights in retail and catering applications as well as panel and area lighting in offices. With the space-saving strain relief housing made of white polycarbonate, the driver, which is suitable for through-wiring, also fits into small ceiling cut-outs and low cavities.

- for lights with protection class II - For installation in dry environments - Ambient temperature during operation: - 20 °C to + 50 °C - temperature protection in accordance with EN 61347-2-13 C5e - plug-in terminals for connection - two separate strain reliefs for input and output cables with very robust terminals - through-wiring possible - protection against overload, open circuit, short circuit, mains burst 1 kV, surge voltage (between L - N) 1 kV, surge voltage (between L/N - PE) 2 kV, surge voltage on output side (against PE) 2 kV
