InnoGreen MULTI BASELine LED panel, square, white
Incl. VAT
InnoGreen MULTI BASELine LED panel, square, white
InnoGreen MULTI BASELine LED panel, square, white
  • 50 days free returns
  • Rated “Great” on Trustpilot
Delivery Information

Integrated LEDs

Product Details
Item no.:
10009216X
Dimensions:
Height: 10 cm
Material:
Aluminium, PMMA
Similar Items

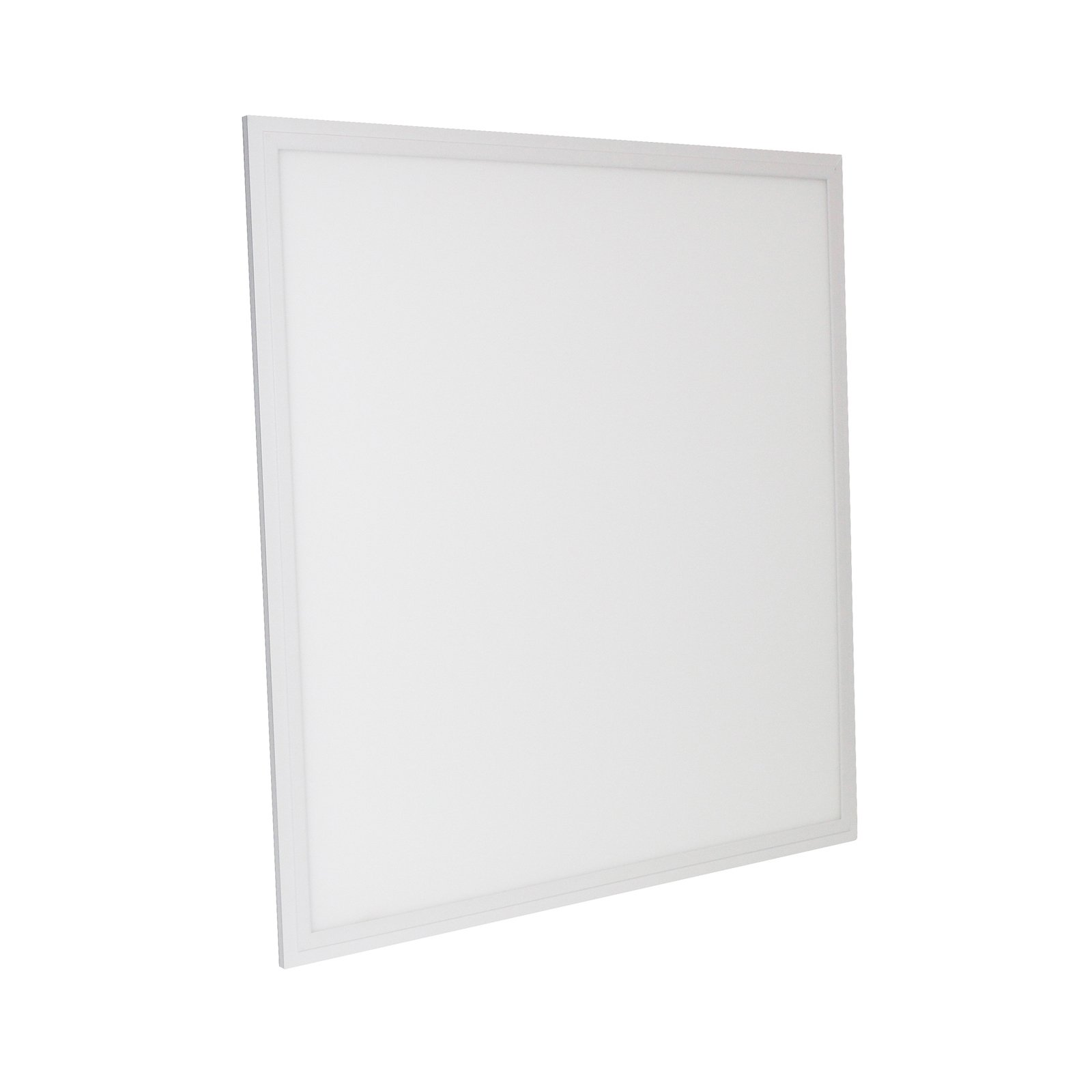

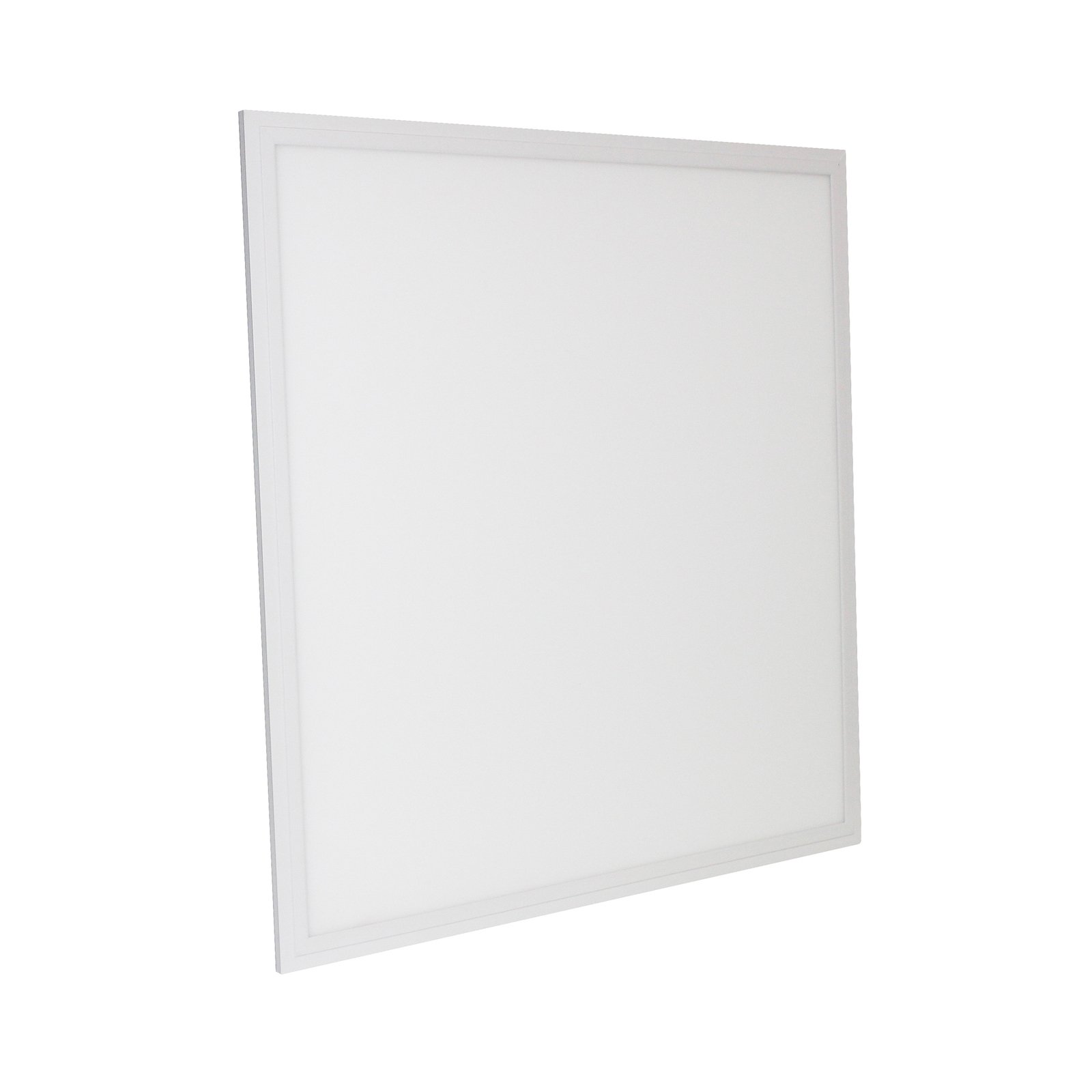

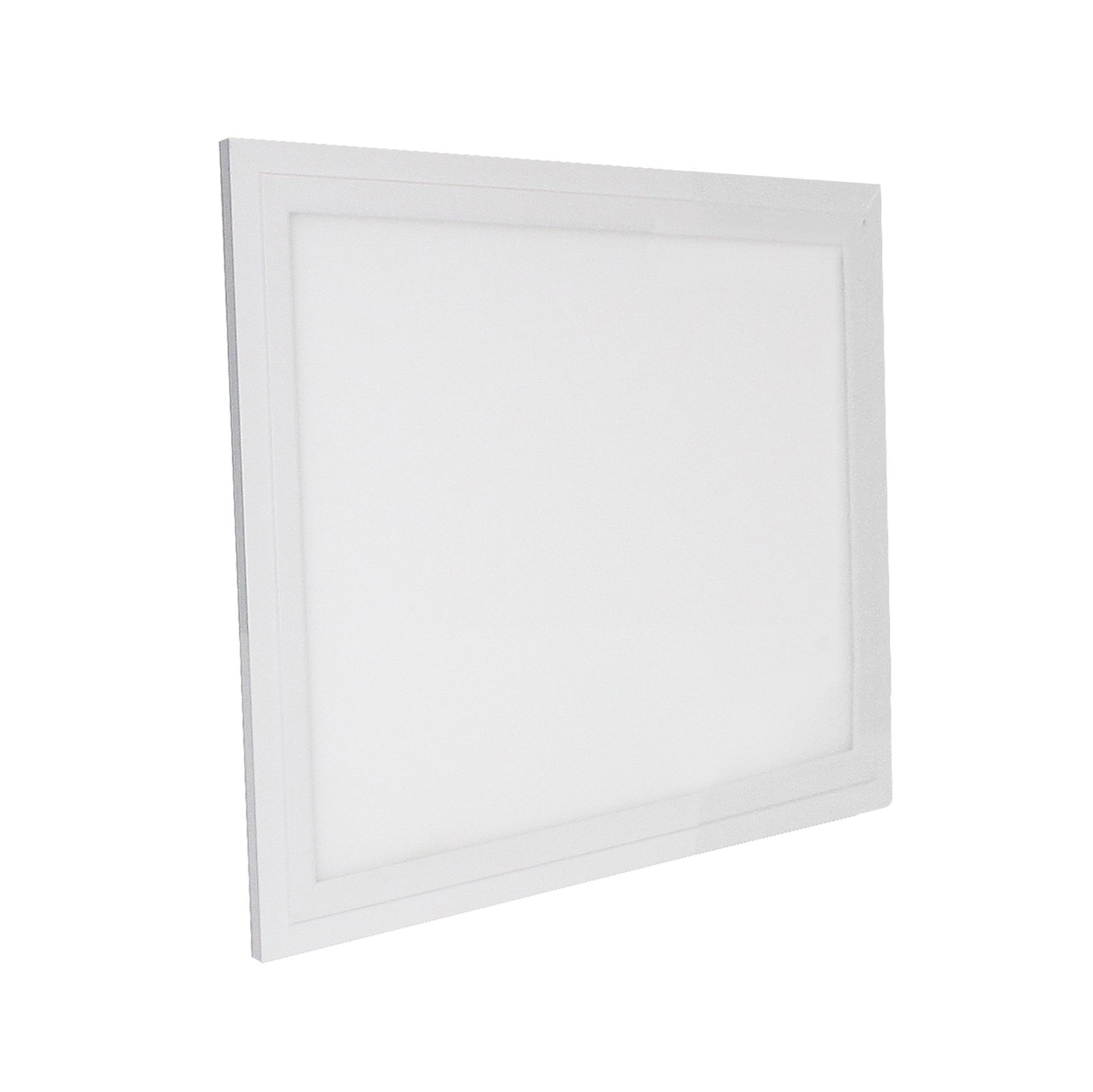

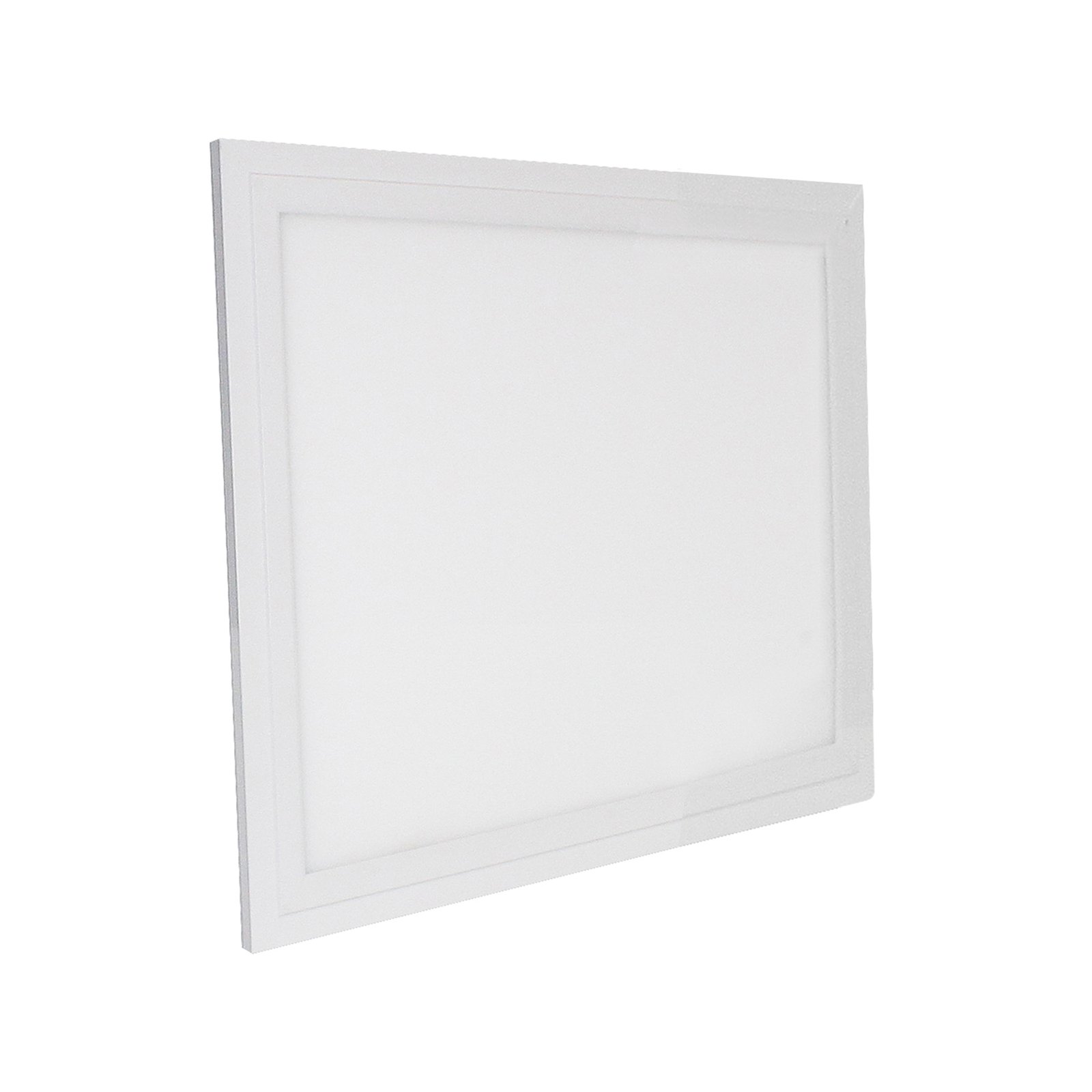

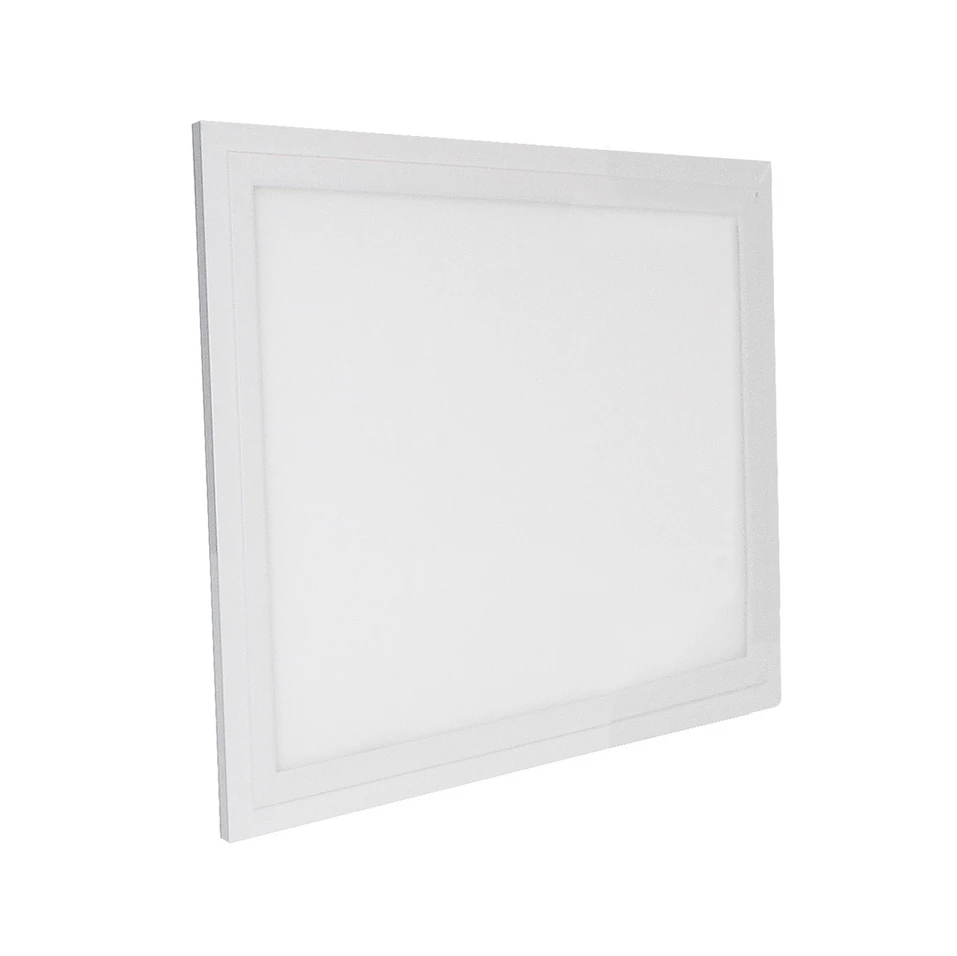

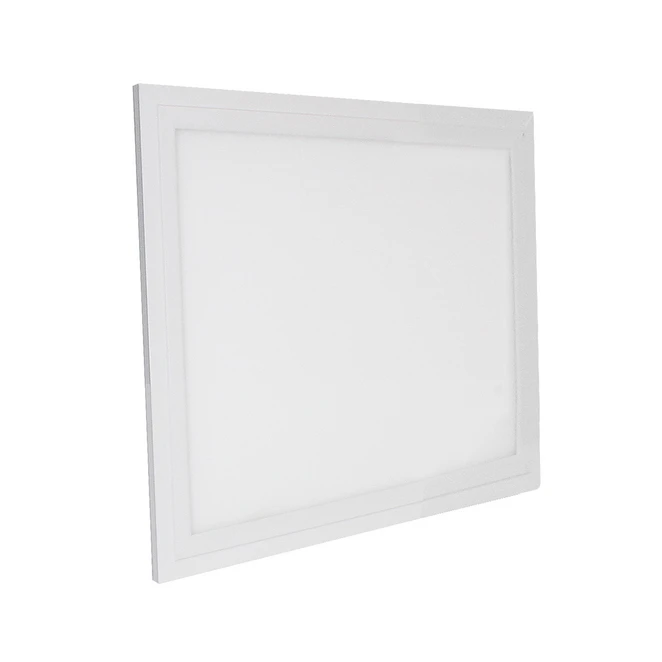

Square LED panel MULTI BASELine, flexible use The LED panel MULTI BASELine impresses with its low height of 1.1 cm, its high-quality frame made of anodised aluminium and a cover made of matt PMMA plastic, which scores points for its high light transmission. In conjunction with the high-quality SMD LEDs inside, good general lighting and uniform light distribution are achieved. This LED panel is particularly versatile in terms of its possible applications. It can be operated at different power levels and is supplied without a driver. The driver can be selected as required and it can be mounted in a surface-mounted or recessed frame (see accessories). The light output depends on the set power. A suitable LED emergency lighting module is also available separately via the accessories. Technical features / properties: - Can be used in the temperature range from -20 to +45 °C - Dimmable via TRIAC with a suitable driver (see accessories) - Various power levels can be set - Can be mounted with a recessed or surface-mounted frame (see accessories) Note: Exclusive driver. A suitable driver is required for operation. Suitable drivers are available separately from the accessories.

SKU:
10009216X
Brand:
InnoGreen
Dimmable:
Yes
Material:
Aluminium, PMMA
Color:
white

Dimensions

Height (cm):
10
Net weight (kg):
0

InnoGreen MULTI BASELine LED panel, square, white

Brand

Brand:
InnoGreen
SKU:
10009216X

Colour & design

Color:
white
Material:
Aluminium, PMMA

Dimensions

Height (cm):
10
Net weight (kg):
0

Light source

Light bulb (included):
Included, Not required
Colour rendering (Ra):
80
Beam angle:
120

Additional functions

Dimmable:
Yes
Integrated dimmer:
Not included

Technical specifications

IP code:
IP40
Protection class:
III

Other information

Special features:
requires LED driver with 125 mA output current
