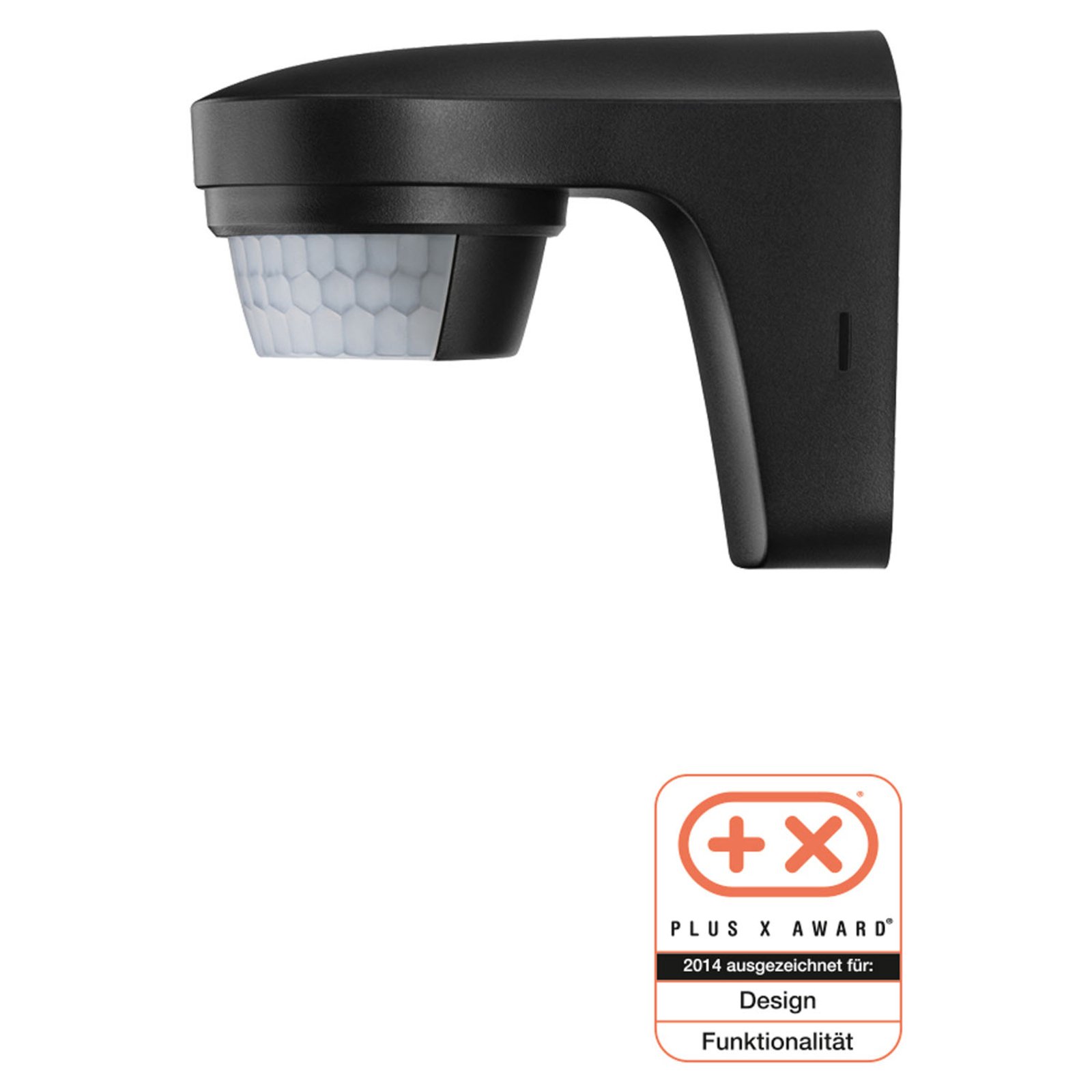

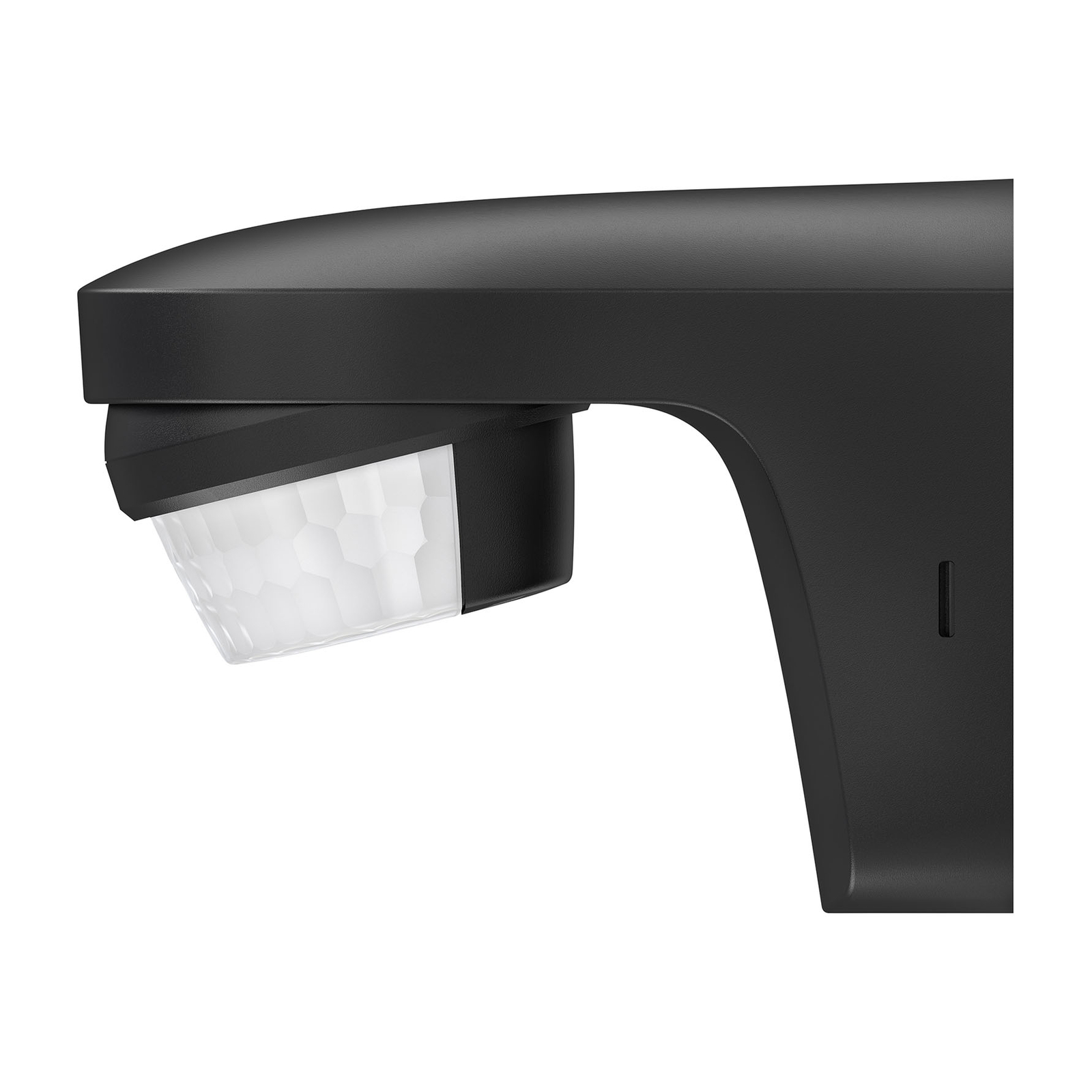

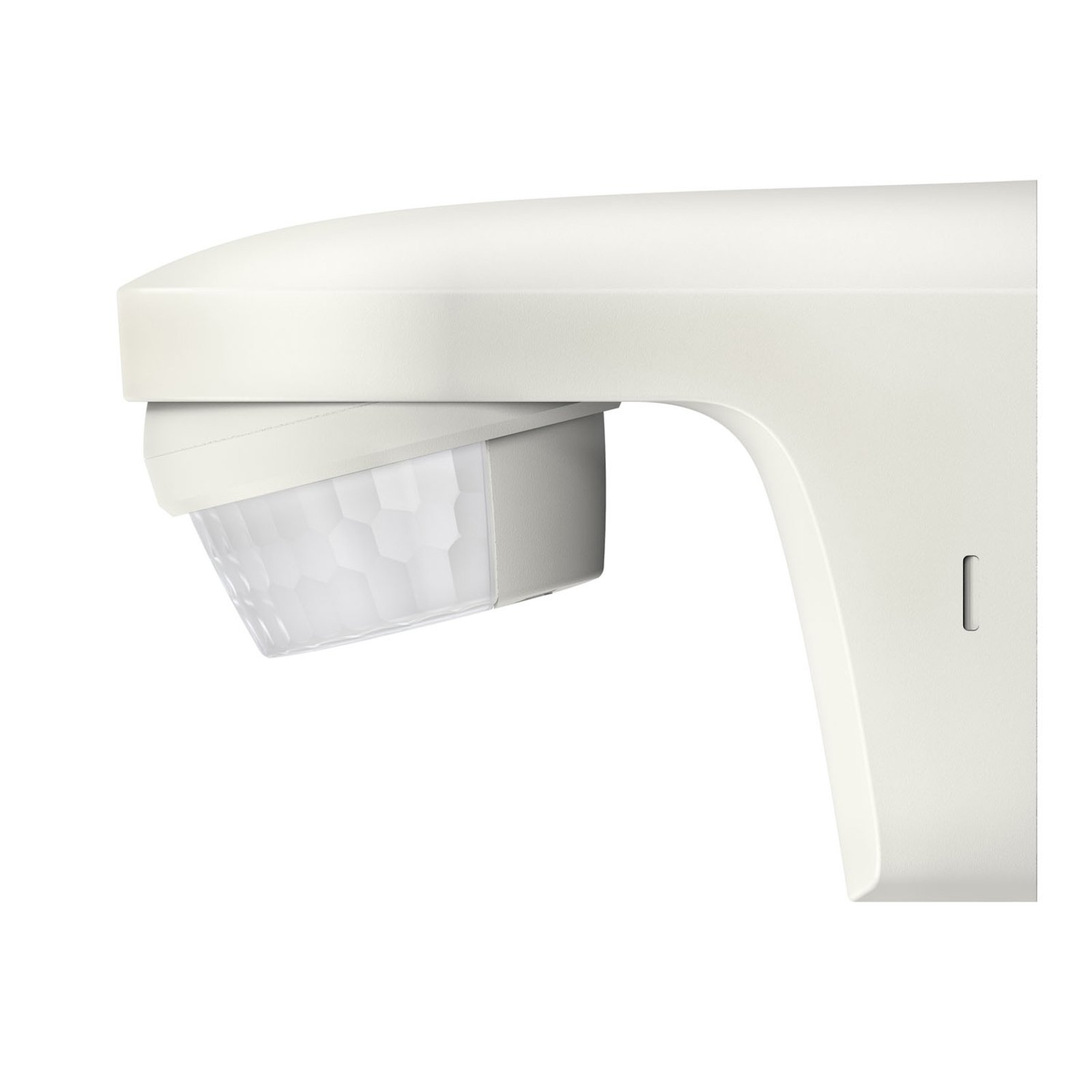

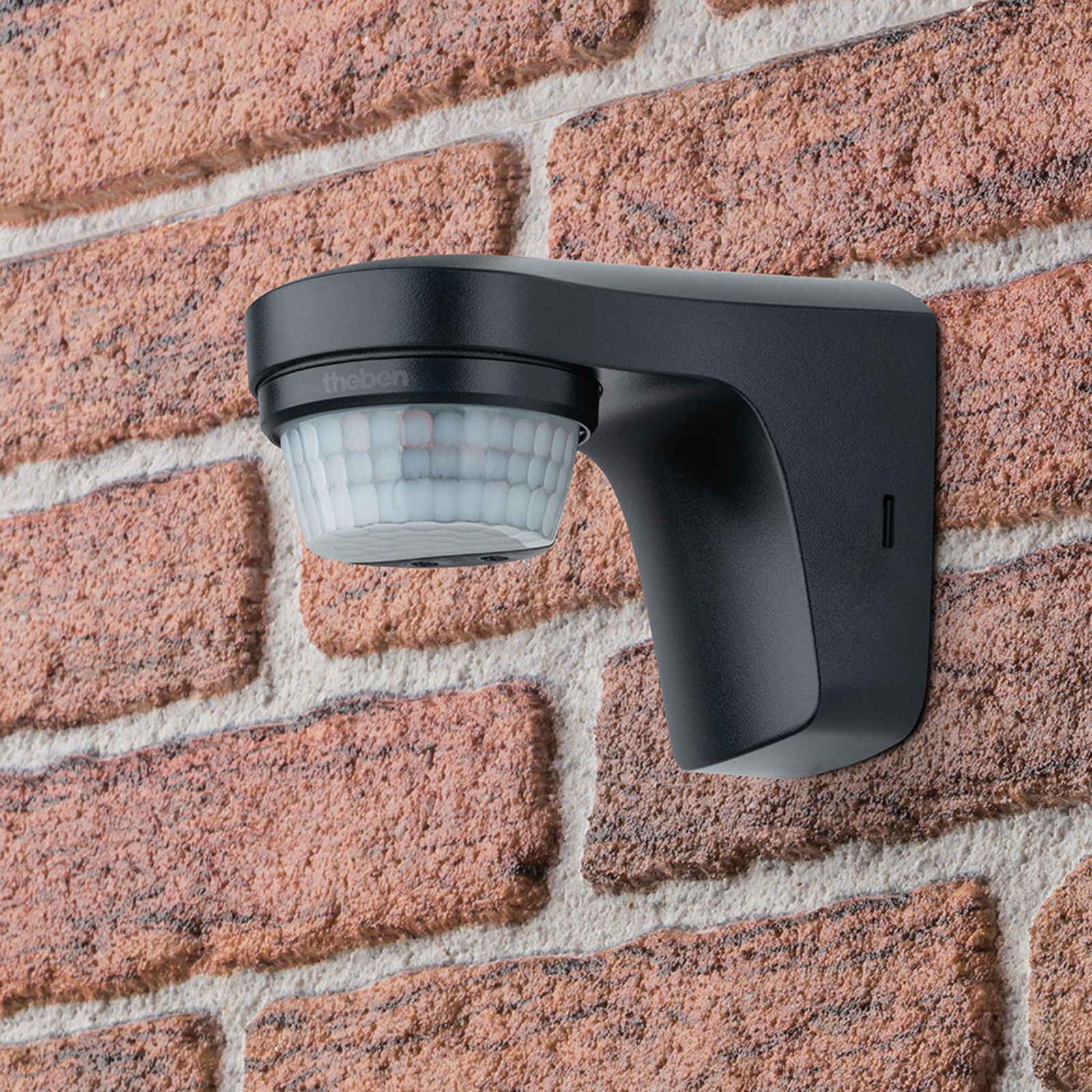

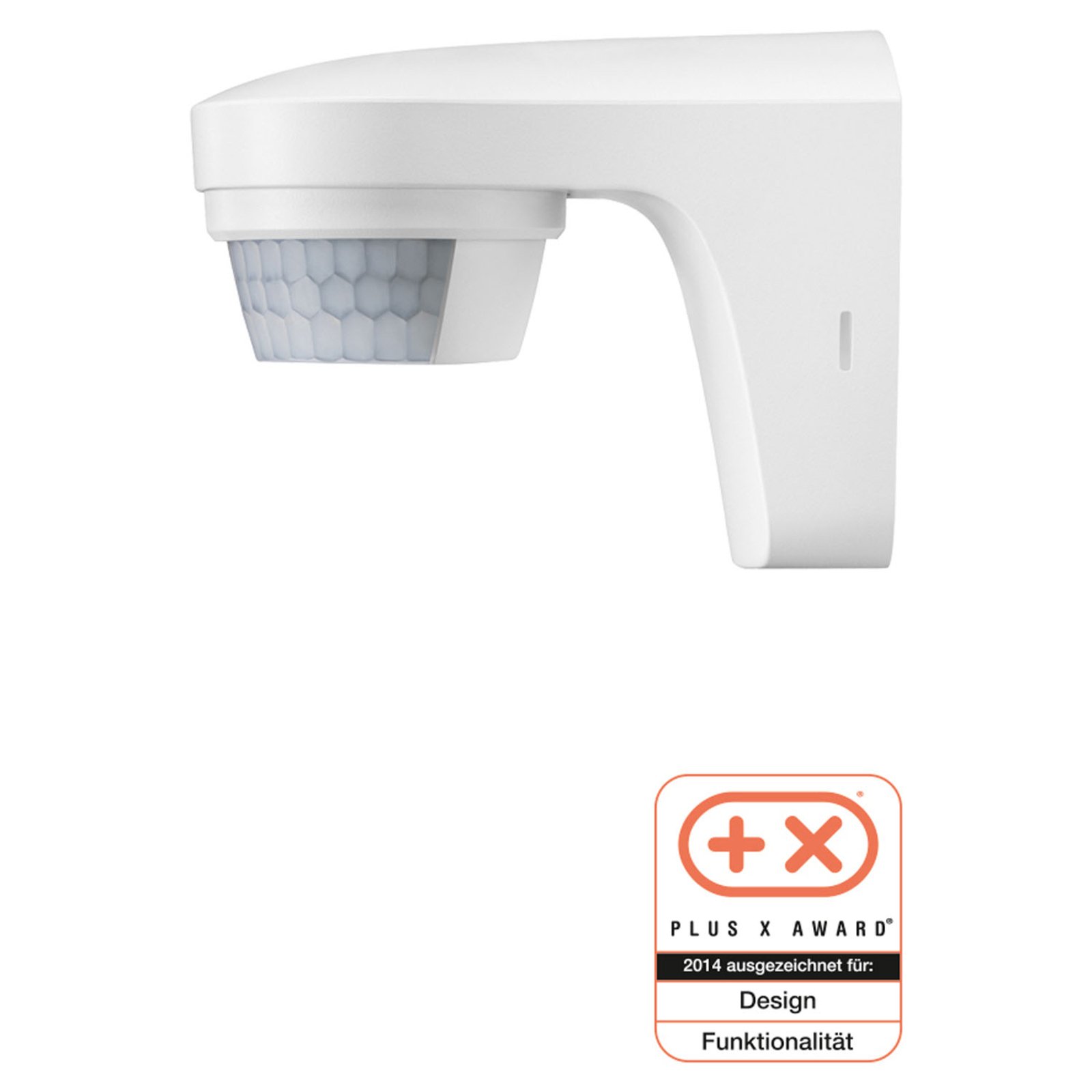

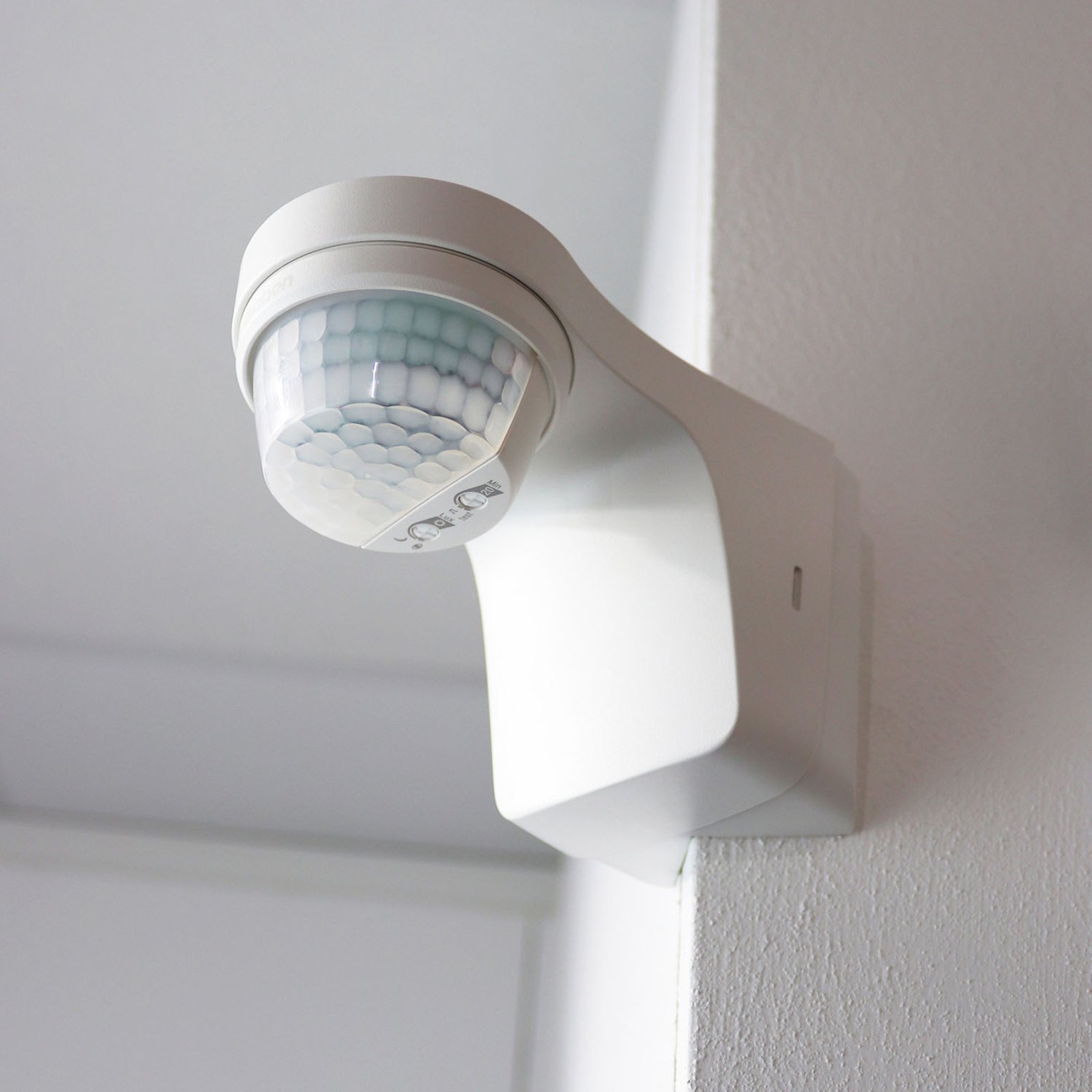

Motion detector theLuxa S180 with rotatable and tiltable sensor head - for outdoor use The motion detector (PIR) theLuxa S180 is designed for wall mounting and is equipped with a sensor head that can be rotated horizontally by 90° and tilted downwards by 30°. Installation on flush-mounted boxes (60 mm) is also possible. Equipped with additional sneak-by guard. Lighting is controlled automatically depending on presence and ambient brightness - Preset setting; immediate commissioning possible - Detection angle: 180° - Detection range: max. 12 m - Trigger threshold setting range ambient brightness: 5 to 1.000 lux - Light switching capacity: 10 A (at 230 V AC, cos φ = 1), 6 A (at 230 V AC, cos φ 0.6), 3 AX (at 230 V AC, cos φ = 0.3) - Light run-on time: 1 s to 20 min - Mounting height 2 to 4 m - One-hand plug-in base mounting - Zero-cross switching for relay-friendly switching and high lamp loads - Incandescent/halogen lamp load: 2.300 W - Fluorescent lamp load: 1,000 VA - Compact fluorescent bulbs: 250 W - LED bulb under 2 W: 25 W - LED bulb over 2 W: 500 W - Inrush current: max. 300 A/200 µs - Test function for checking the detection range - Ambient temperature: - 25 °C to + 45 °C
