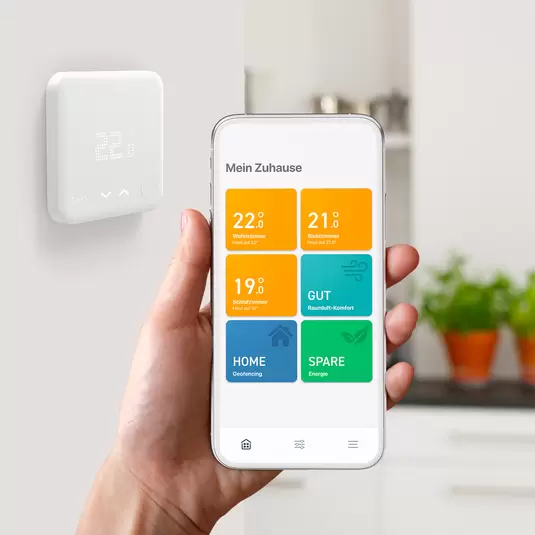

tado° smart thermostat (wired)

tado° Smart Thermostat add-on product for single room control

This room thermostat is used to extend the smart heating control based on the Starter Kit from tado° to additional living rooms. It replaces room thermostats of the heating system or the floor heating.

The Smart Thermostat replaces conventional wired room thermostats or regulates the heating system via wireless connection with an Extension Kit. To establish an Internet connection, the Internet Bridge (communicates with the Smart Thermostat via radio) of the Starter Kit is connected to the router. Via the tado° app, the control succeeds on the basis of the location, the weather forecast, a set schedule and the control of individual rooms. Data on outdoor air quality (including pollen load) enables optimized selection of ventilation times.

For convenient on-site voice control, the thermostat can be used with Siri, Google Assistant or Amazon Echo. Using IFTTT, pairing with other devices is possible to create scenes.

Features/Compatibility

- integrates with tado° Starter Kits V2/V3/V3

- senses temperature, humidity, ambient light via sensors

- operates via two touch buttons and one mechanical button

- replaces conventional thermostats

- can be used with many heating systems: Condensing boilers, low temperature boilers, conventional gas and oil boilers, conventional hydraulic floor heating systems, air and ground source heat pumps, systems with switching voltage up to 230V, systems with floating switching, systems with analog and digital BUS interfaces

- threaded connection: M30 x 1.5; adapters for other valve types are included

- possible integration with Apple HomeKit, Google Assistant, Amazon Alexa, IFTTT

- apps (free including updates): compatible with iOS 10, Android 5 and higher

Technical data

- Scope of delivery: tado° Smart Thermostat, 3 AAA batteries, sticker for wiring, 2 screws, 2 dowels, 2 adhesive pads

- Power supply: 5 - 36 V DC 0.2 A/4.5 V DC

- Display: LED matrix with 10 x 19 LEDs, 32 x 20 mm

- Weight Smart Thermostat: 132 g

- Wireless connection: 868 MHz, mesh (6LoWPAN)

- Data encryption: TLS 1.2 (SSL), 2048-bit Extended Validation Certificate/TLS 1.2 (SSL), 256-bit with elliptic curves/AES-CCM

- Languages: English, French, German, Italian, Spanish, Dutch

- Certification: ISO 14001, ISO 9001, BS OHSAS 18001, EU RoHS, Recyclable Packaging Directive
