Technical Specifications
-
Motion sensor
STEINEL XLED curved S sensor outdoor spot white
| Item no. | 8505698 |
|---|---|
| Brand | STEINEL |
| Material | plastic |
| Colour | white |
| Luminous colour | warm white (3,000 K) |
| Light bulb | LED - 9.3 W in total |
| Width (in cm) | 16 |
| Height (in cm) | 12 |
| Depth (in cm) | 10.7 |
| Light output | 862 lm |
| Total luminous flux (in lm) | 862 |
| Supply voltage in volts | 230 |
| IP code | IP44 |
| Protection class | II |
| Special features | made in Europe |
| Light bulb included | Yes |
| Incl. motion detector | Yes |
| Guarantee manufacturer | Steinel - three-year guarantee on lights |
Product Description
- Premium Quality

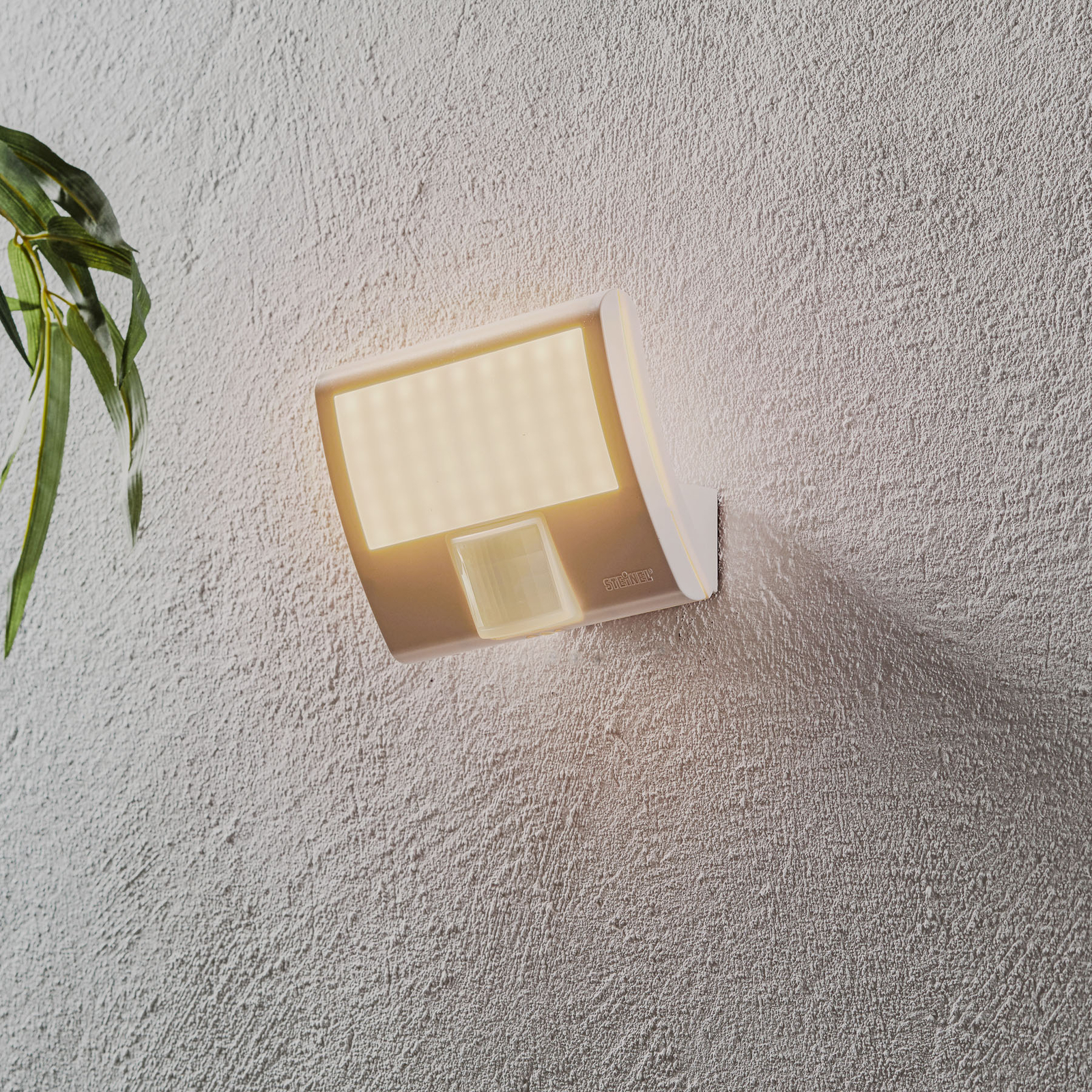

Versatile LED outdoor wall lamp XLED curved S with innovative LED technology
This outdoor wall lamp is a discreet light dispenser, where the lighting effect is the main focus. It has a rectangular shape and its snow-white appearance makes it ideal for integration into outdoor design. As soon as the built-in passive infrared sensor detects an approaching person, the universal white LED light switches on immediately, so that a safe illumination of driveways, paths or entrance areas around the house is always guaranteed. Manufactured from UV-resistant plastic, the XLED curved S luminaire is durable.
- Swivel range spotlight: /- 30° horizontal
Technical data motion detector:
- range: max. 8 m
- detection angle: 160°
- time setting: 2 s - 70 min
- twilight setting: 2 - 1,000 lx
- mounting height max. 4 m
Downloads:
Instructions (10.3 MB)
Questions & Answers (1)
Hi. The range on the sensor says max 8m, does that mean it can be set at shorter distances? If so, what is the range please
Customer Reviews (3)
STEINEL XLED curved S sensor outdoor spot white
Light good but sensor poor
Light coverage good timer function worked well, Sensor movement limite...
Light coverage good timer function worked well, Sensor movement limited, mounted this light 2.1m up on wall and although it states range up to 8m it would only activate at just over 3m so have returned item as not going is enough for its intended use
-
Verified Customer
Verified CustomerExcellent from Steinel as usual
The light performs very well after trial and error setting the lux sen...
The light performs very well after trial and error setting the lux sensor, once set excellent coverage, fitted over the garage door which is white so blends very well
- Yes, I recommend this product.
-
Verified Customer
Security light
Good looking light and not over bright. Tilts side to side but not up ...
Good looking light and not over bright. Tilts side to side but not up and down.
- Yes, I recommend this product.
-
Verified Customer
Hi MalcomeH53,
The range on this sensor cannot be shortened to less than 8 ,eters.
