Solar pump system Siena with LEDs
Solar pump system Siena with LEDs
  • Solar pump system Siena with LEDs
  • Solar pump system Siena with LEDs
€249.90
(1)
5
1
4
0
3
0
2
0
1
0

Delivery time: 2-3 weeks

Share this item:

Trade and frequent orders? Larger projects?

Contact to trade team

Technical Specifications

Esotec

Solar pump system Siena with LEDs

Item no. 3012106
Manufacturer ESOTEC
Material Plastic, aluminium
Colour black, aluminium
Luminous colour daylight (6,000 K)
Light bulb 6 x LED
Light output 5 lm
Total luminous flux (in lm) 5
IP code IP68
Protection class III
Light bulb included Yes

Product Description

Solar pump system Siena LED - the garden highlight!


Water and light, the super effect by day and night.

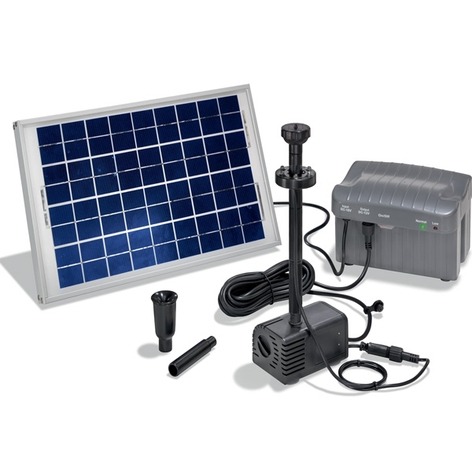

Perfect combination of a solar module, battery reservoir with controllable output voltage, submersible pump and LED ring for dramatic lighting.

A dramatically illuminated fountain for a garden pond or decorative light design for a rock fountain. Individual usage through the removable light ring. The light ring can be placed on the riser or on a hose as well. Universal usage through a cable extension (accessory) for the light ring. Different coloured LED light ring retrofittable (art. 3012114 - 3012118).

The solar module creates enough energy in the summer through the sunlight in order to operate the pump with light and to simultaneously charge the battery. Thus, you can also have an enchanting, illuminated fountain in your garden pond in the evening.

Additionally, you have the possibility to activate the pump with light through a switch on the battery box first when it is dark and thus, you can also enjoy this light for several hours when it is dark out.

Through an installed controller in the battery box, the voltage and thus the output of the pump can be controlled between 12 and 24 V.

Plug-in system with high-quality, brushless pump with dry run and overload protection and long lasting LED lighting.

Different fountains can be created with the included 4 risers and 2 different sprinklers (3-stage fountain and water bell).

Plug-in delivery constructed in minutes.

Technical data:

Solar module:

- Output: 20 W

- Rated current: 1.2 A

- Rated voltage: 17 V

- dimensions (L x W x H): 530 x 360 x 25 mm

- Weight: 1.8 kg

Submersible pump:

- Max. flow rate (12V - 24V): 900 - 1500 l/h

- Max. flow height (12V - 24V): 0.8 - 2.8 m

- Operating voltage: 12 - 24 V DC

- Power drain (12V - 24V): approx. 5 W - 22 W

- Dry run protection

- Cable length: 5 m

- Protection class: IP68

- dimensions (L x W x H): 129 x 85 x 91 mm

- Hose connection: 13 mm or 1/2" thread

- Weight: 950 g

- Design with 4 suction cups on the under side

- Nozzle set: 4 risers with 85 mm length and 2 alternating jets (3-level fountain and water chime)

LED light ring:

- 6 white LEDs

- Operating voltage: 12 - 24 V DC

- Cable length: 75 cm

- Dimensions (D inside/outside): 15 x 15 x 20 mm

- Accessory 5 m extension line (art. no.: 101750)

Battery:

- Max. duration with full battery: at 12V: 6 hours

- Battery amount: 12V / 12 Ah

- Weight: 3 kg

- Casing: Dimensions (L x W x H): 182 x 152 x 125 mm

Note: Protect the pump from frost, do not operate during winter!
