Pond ventilator Solar Air-Plus

Solar Air-Plus for free aeration of the garden pond - with battery box

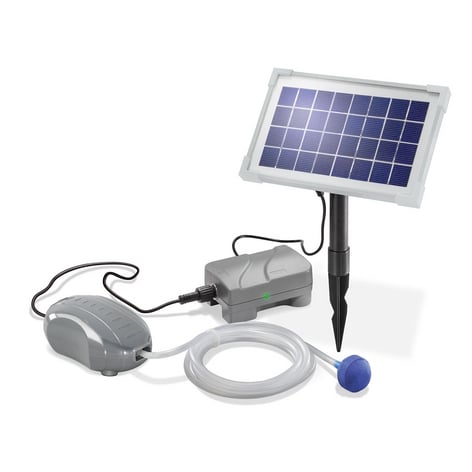

Solar Air Plus is pond aeration for free: The powerful solar module and the battery box ensure aeration even after the daily sunshine. Once the battery in the battery box is charged, the air pump switches on automatically. The delivery is ready for use with solar module, battery box with 6 V/1,200 mAh, air pump, 2 m air hose and bubble stone. The solar module can be optimally aligned to the sun via a ball joint.

Technical data:

Solar module:

- powerful 3.5 W crystalline solar module

- Dimensions: Length 25.5 cm, width 17 cm, height 2.2 cm

- Weight: 630 g

Accustation:

- Battery pack NiMh 6 V/1,200 mAh

- Dimensions: Length 10.5 cm, width 7.3 cm, height 4.5 cm

- Weight: 215 g

- Cable length: 1.4 m

- 2 m hose and bubble stone, Ø 3 cm

Air pump:

- max. air output: > 450 mmHg

- max. air volume 120 l/h.

- Cable length air pump 3 m

- Dimensions: Length 12 cm, width 6,5 cm, height 4,2 cm

- Weight: 180 g

- recommended pond size 500 to 2,000 l

Downloads:

• Instructions (258 KB)
