High-quality solar pump system RIMINI S

High-quality pump system RIMINI S for balcony, terrace or garden without battery

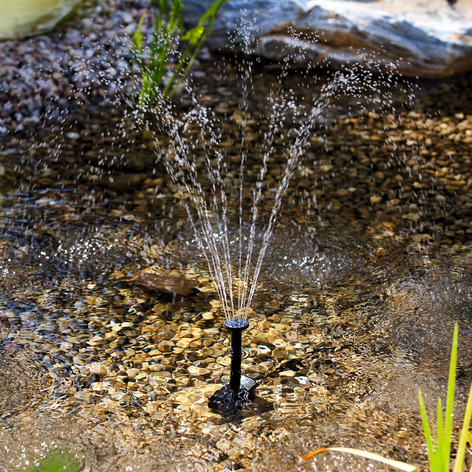

This high-quality pump system is ideal for usage in a small garden pond, in a plant pot or to supply a small waterspout. Plug-in system with high-quality crystalline solar module incl. ground stake and submersible pump with low-wear electronic drive.

4 different spray patterns can be created with the included riser and the nozzle set. The flow rate of the pump can be adjusted. The pump works in direct operation without a battery reservoir. This system starts to work with sunlight on the solar module.

Technical data:

Solar module:

- Output: 2 Wp

- Rated current: 340 mA

- Rated voltage: 6 V

- dimensions (L x W x H): 190 x 135 x 20 mm

- Weight: 410 g

Submersible pump:

- Max. flow rate: 175 l/h (with insolation)

- Max. flow rate: 70 cm (with complete solar irradiation)

- Cable length: 5 m

- dimensions (L x W x H): 72 x 36 x 56 mm

- Hose connection: 8.5 or 10.5 mm

- Weight: 220 g

- Design with 4 suction cups on the under side

- Nozzle set: 4 risers with 60 mm length

Note: Protect the pump from frost, do not operate during winter!

Downloads:

• Instructions (492 KB)
